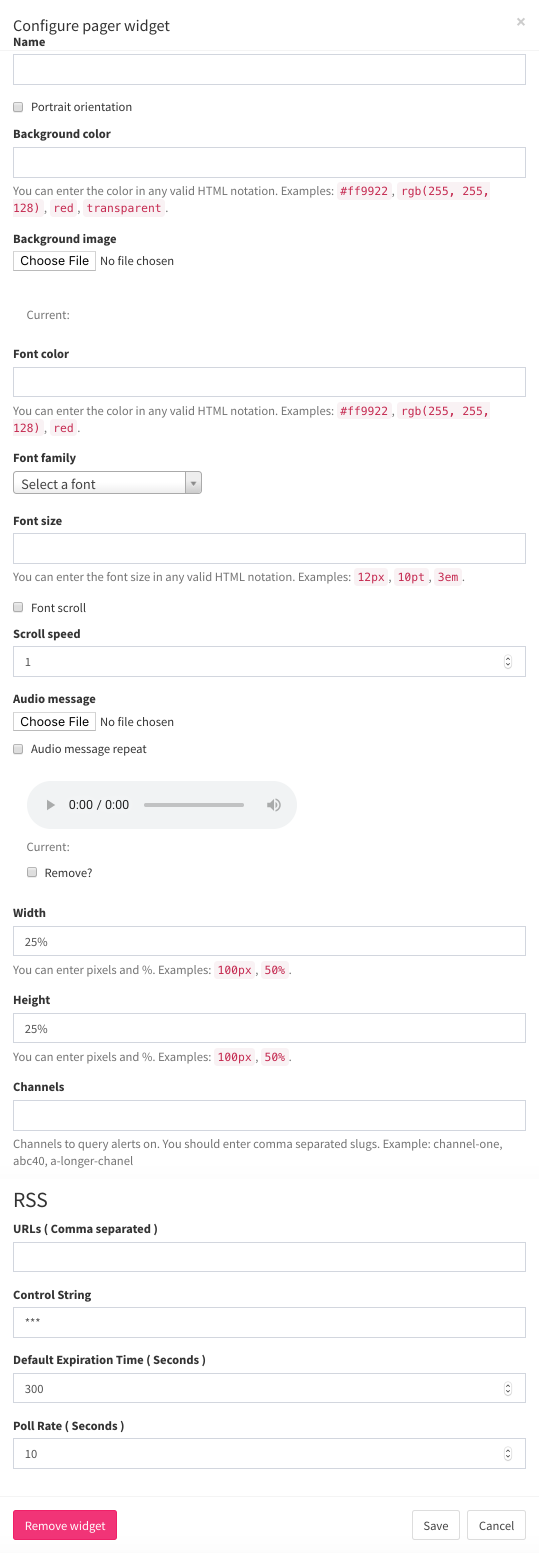

Overview of the Visual Paging Widget Configuration
Click to see full screen image.
Current Time Widget Overview
Purpose
The Visual Paging Widget displays static or scrolling text pulled from your Mass Notification System, Emergency Alert System, OmniAlly AlertCTRL system, or any RSS feeds you wish to link to.
Use Design
Useful in layouts that need to provide ADA compliance with visual paging for the hard of hearing, or that simply want to display time sensitive messages on the screen.
Field and Button Descriptions
Name
A description of the widget. This is optional as it is only used in the widget dropdown section for a quick-glance understanding of the widget. For more information on the widget dropdown section, go here.
Background Color / Background Image
Choose between a solid background color, or a background image to display when the Emergency Widget takes over.
Background color
Can be defined in plain text (red, blue, green), or by its HEX number. This number can be identified by selecting the exact color you want in a color picker such as the one provided by HTMLColorCodes.com here.
Background image
Instead of a single color, you can upload a background image as a PNG, JPG, JPEG or GIF. This image will be stretched to fit the screen, so make sure that its resolution matches the computer's output (1920x1080 or 1080x1920 for example).
Font Settings
Font color
Can be defined in plain text (red, blue, green), or by its HEX number. This number can be identified by selecting the exact color you want in a color picker such as the one provided by HTMLColorCodes.com here.
Font family
Choose from any of the currently available Google Fonts. For a full list, see Google Fonts.
Font size
Set the font size by pixel, point, or Ems. You will need to specify the measurement unit when inputting the size. For example, 12px, 12pt, and 12em are completely different from each other. No unit applied will default to pixel count. To learn more about the difference between these, check W3's CSS page here.
Scrolling Text
Font scroll
If you want the text that pulls from your Emergency Alert System, Mass Notification System, or AlertCTRL platform to scroll across the page instead of sitting idly, check the "Font scroll" box.
Scroll speed
Measured in pixels per second, this sets the speed at which text will scroll across the screen. Please note that higher values can appear choppy, while lower values appear more fluid.
Audio Messaging
Choose File
Select an mp3 of a pre-recorded message that you would like to play when the emergency widget is activated. This will only play once by default. Useful for calm instructions to the nearest fire exit, assembly point, or more.
Audio message repeat
Click this checkbox if you'd like your audio message to repeat until the emergency has ended.
Remove
To remove the audio clip already attached, just click the checkbox, save the widget, and save the layout.
Widget Width and Height
Set the width and height in either pixels, or as a percentage of the screen. Pixels is good for exact placement when you know precisely the video output resolution the computer will use, while percentage is useful if using the same layout across multiple devices where different resolutions may be in place (i.e., one screen has 1080p and the other is 4k).

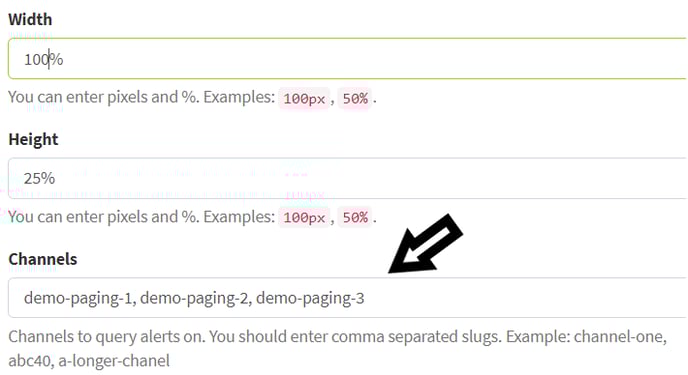

Channels
If using the AlertCTRL platform solely, or in conjunction with other RSS-feeds, add the channel slug. The slug(s) can be found in the AlertCTRL platform's Channel section.
Use commas between slugs to add multiple channels that can trigger this feed.
RSS Feeds
URLs ( Comma separated )
Any RSS feeds coming from AlertCTRL, an Emergency Alert System, or Mass Notification System can be added here. If using multiples to take advantage of a zoning strategy then separate each URL with a comma.
Control String
When an emergency is done you can send a new RSS feed push starting with a pre-defined "control string" that tells the system the emergency is over and to shut off the Emergency Widget for now. In this example, sending a message starting with "***" would turn off the Emergency Widget.
Example to shut off the Emergency Widget:
Default Expiration Time ( Seconds )
How long the emergency alert should stay up on the screen by default until it automatically shuts back off. If wanting this to be forever, simply input a staggeringly high number of seconds.
Poll Rate ( Seconds )
How often the device will reach out to the RSS feeds to see if there is any new RSS feed to pull. The most frequent poll rate is as low as 5 seconds, but it can be much higher if trying to conserve network bandwidth. The higher the number the slower it will pick up the emergency alert, and likewise the lower the number the faster it will pick up the emergency alert.
Save button
Save the widget settings. For final savings you'll still need to click any of the "Save" variants as shown in the Layout Configuration page.
Remove widget button
Deletes the widget completely. This is irreversible, so use with caution.
